Sensors & Smart Transponders
   ScanGate® is a brand and product line of DATATRONIC

   CONTACT Form and Product List with Links to all Web Sites



FEATURED PRODUCTS


Thumbnail Image 1

SGS-TC3000-34-01-A
ScanGate®Sensor

TOKENKUBETM with unique ID and R/W memory. Sensor optional for temperature, acceleration and shock, light and magnetic fields. Integrated logger, ultra low power consumption. Works on metal Inventory and asset tracing and tracking Production control, data logging in logistics, RLTS for mobile assets and production parts Dimensions: 76 mm x 28 mm x 22mm Protection: IP68 Operating temperature: - 25°C to +60°C Housing: Delrin, others on request (ABS, PA6) Fixing by adhesive, two component glue or double adhesive tape

Datasheet

Thumbnail Image 1

SGS-6934-01-M
ScanGate®Sensor

Transponder with unique ID and R/W memory. Sensor for temperature, acceleration and shock, light and magnetic fields. Integrated logger, ultra low power consumption. Works on metal. Integrated Magnet Holders Service asset tracing and tracking Production control, data logging in logistics, RLTS for mobile assets and production parts Dimensions: 69 mm x 34 mm x 10mm Protection: IP68 Operating temperature: - 25°C to +60°C Housing: Delrin, others on request (ABS, PA6) Integrated magnets for fixing on metal, easy reusable

Datasheet

  Thumbnail Image 1


SGS-3207-01-A
ScanGate®Sensor

Transponder with unique ID and R/W memory. Sensor for temperature, acceleration and shock, light and magnetic fields. Integrated logger, ultra low power consumption. Works on metal Inventory and asset tracing and tracking Production control, data logging in logistics, RLTS for mobile assets and production parts Dimensions: 32 mm diameter x 7mm Protection: IP68 Operating temperature: - 25°C to +60°C Housing: Delrin, others on request (ABS, PA6) Fixing by two component glue or double adhesive tape

Datasheet


Thumbnail Image 1

SGS-3207-01-Ex
ScanGate®SmartTag

Transponder with unique ID and R/W memory. Sensor for temperature, acceleration and shock, light and magnetic fields. Integrated logger, ultra low power consumption. Works on metal Inventory and asset tracing and tracking Production control, data logging in logistics, RLTS for mobile assets and production parts ATEX approval on request Dimensions: 32 mm diameter x 10mm Protection: IP68 Operating temperature: - 25°C to +60°C Housing: Delrin, others on request (ABS, PA6) Fixing by two component glue or double adhesive tape

Datasheet

Thumbnail Image 1

SGS-9050-CS01
ScanGate®SmartTag

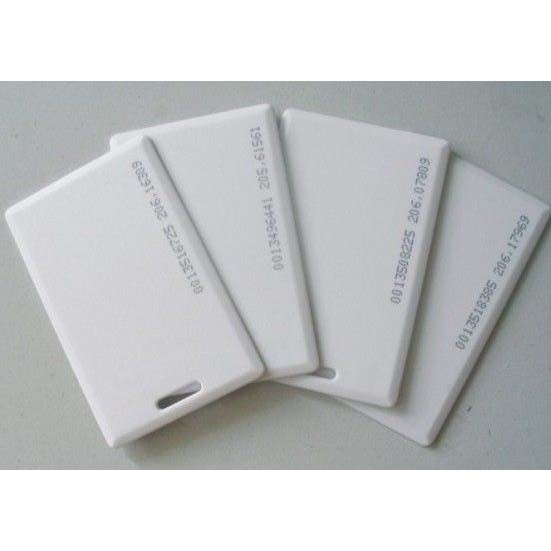

Clamshel card with unique ID and R/W memory. Sensor for temperature, acceleration and shock, light and magnetic fields. Integrated logger, ultra low power consumption. People tracing and tracking Data logging for RLTS for secure areas and hazardous environment, in mines and tunnels Dimensions: 90 mm x 40 mm x 6mm Protection: IP65 Operating temperature: - 25°C to +60°C Housing: ABS Fixing with clip

Datasheet


Thumbnail Image 1


SGS-400-KB01
ScanGate®SmartTag

Keyfobs with unique ID and R/W memory. Sensor for temperature, acceleration and shock, light and magnetic fields. Integrated logger, ultra low power consumption. People access and Time and Attendance, tracing and tracking Data logging for RLTS for secure areas and hazardous environment, in mines and tunnels Dimensions: 40 mm diameter Protection: IP65 Operating temperature: - 25°C to +60°C Housing: ABS Fixing with clip

Datasheet
